Formax Cut-True 31H Hydraulic Guillotine Paper Cutter

The Formax Cut-True 31H Hydraulic Guillotine Paper Cutter is engineered for high-volume, two-shift operation with a hydraulic blade and clamp drive, delivering precise cutting of paper stacks up to 4" high and 28" wide. It features a color touchscreen control panel with automated back gauge positioning, 100-job memory, foot-pedal pre-clamp, bright LED cutting line, internal cutting-area light, and 0.1mm cutting accuracy for consistent, professional results. Operators benefit from an anti-friction air-assist ball deck and extra-large side tables for smooth handling of large sheets, as well as adjustable hydraulic clamp pressure and a removable false clamp to protect delicate stock and reduce minimum cut length. Safety is prioritized with dual-button controls, infrared safety curtain, blade lock, key lock, automatic blade return, blade-change safety tool, and a wooden paper push for safe alignment. Designed for print shops and in-plant finishing, the Cut-True 31H delivers durability, precision, and maximum productivity and replacement blades and cutting sticks are available as accessories to maintain peak cutting performance.

Product Details

• Standard Features:
  • Heavy Duty Construction: Designed for true two-shift operation.
  • Hydraulically-Controlled: Adjustable hydraulics control paper clamp and blade carrier.

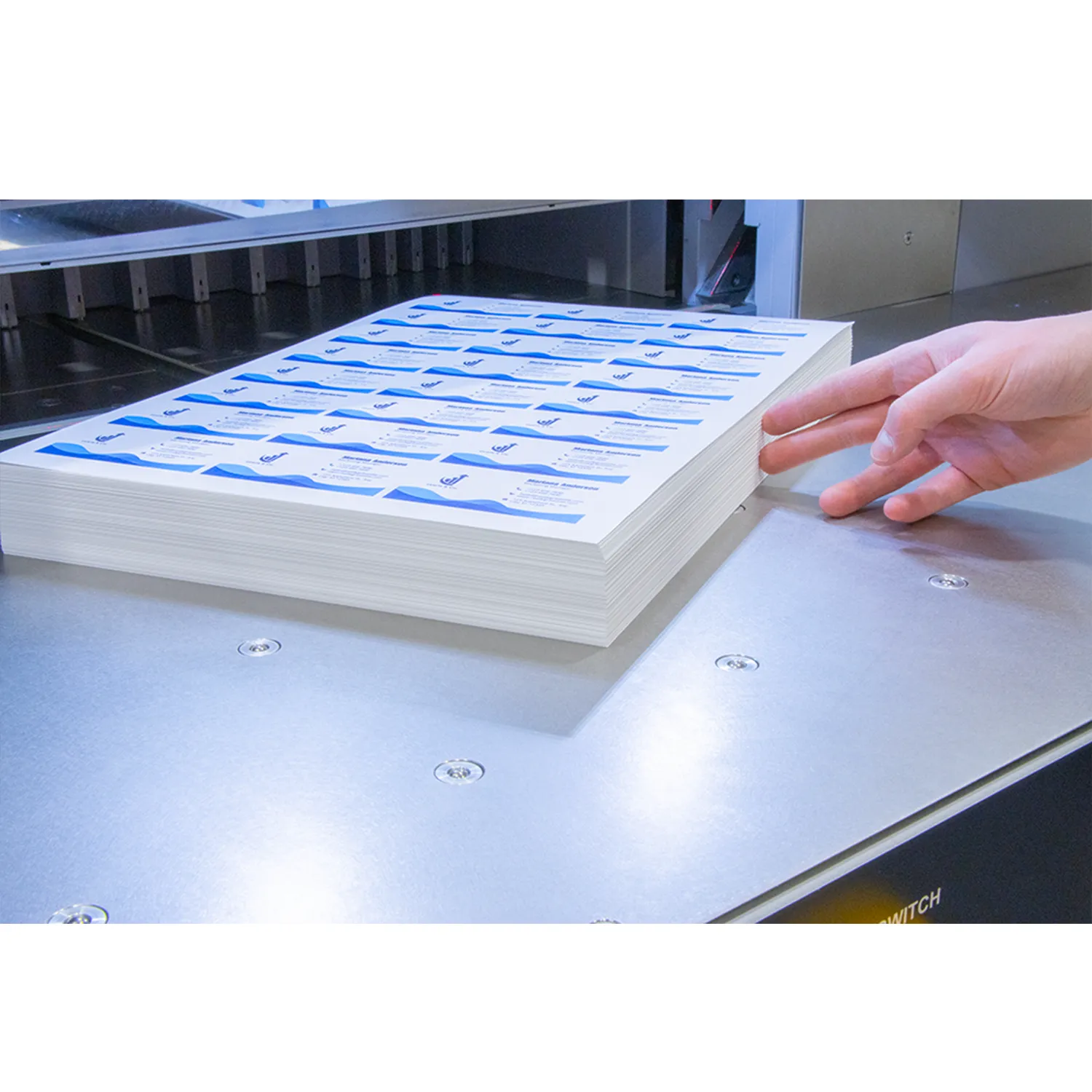

  • Low-Friction Air-Assist Ball Deck: Makes it easy for operators to move and position heavy paper stacks.
  • High-Speed Hardened Steel Blade: Designed for accurate cuts and long life.
  • False Clamp: Minimizes marking of sensitive paper stock, easily stores within the machine when not in use.

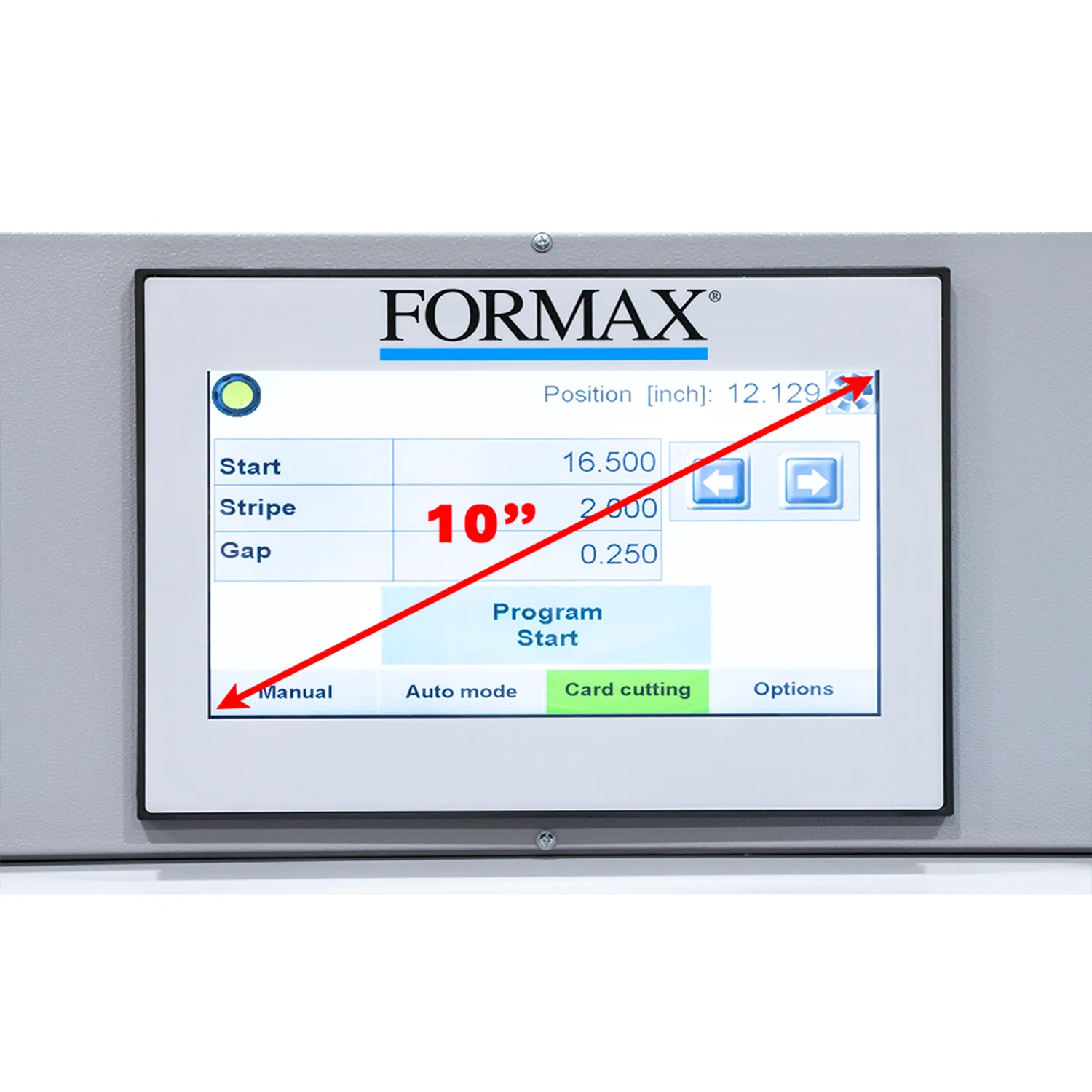

  • Color Touchscreen Control Panel: Easily set, adjust and program jobs.

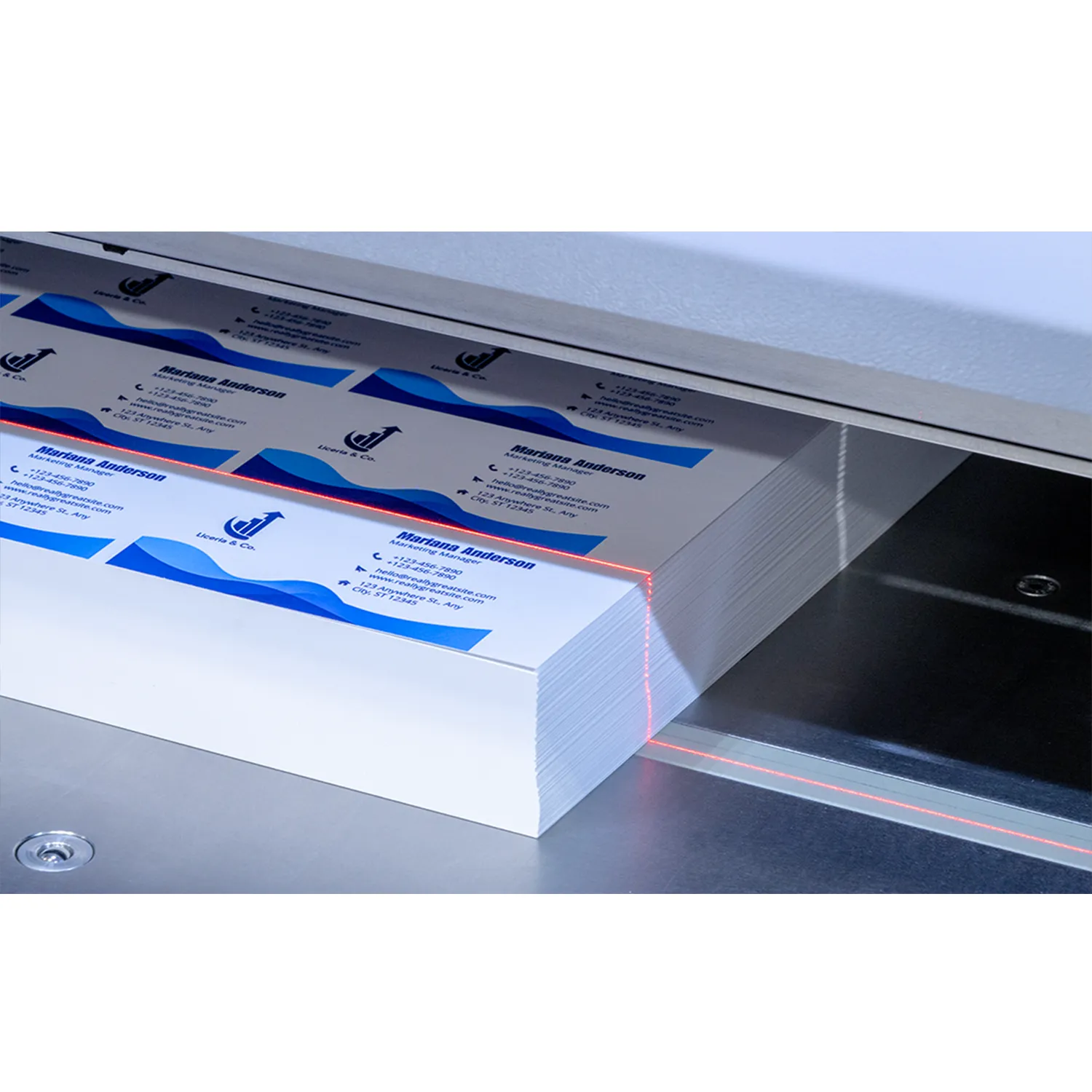

  • LED Cutting Line: Bright red LED line indicates exactly where the blade will cut, allowing for precise adjustments prior to cutting.
  • Solid Steel Blade Carrier: Built for longevity and minimal maintenance.
  • Internal Light: Illuminates the cutting area for improved visibility.
  • Extra-Large Side Tables: Allow users to maneuver large paper stacks with ease.

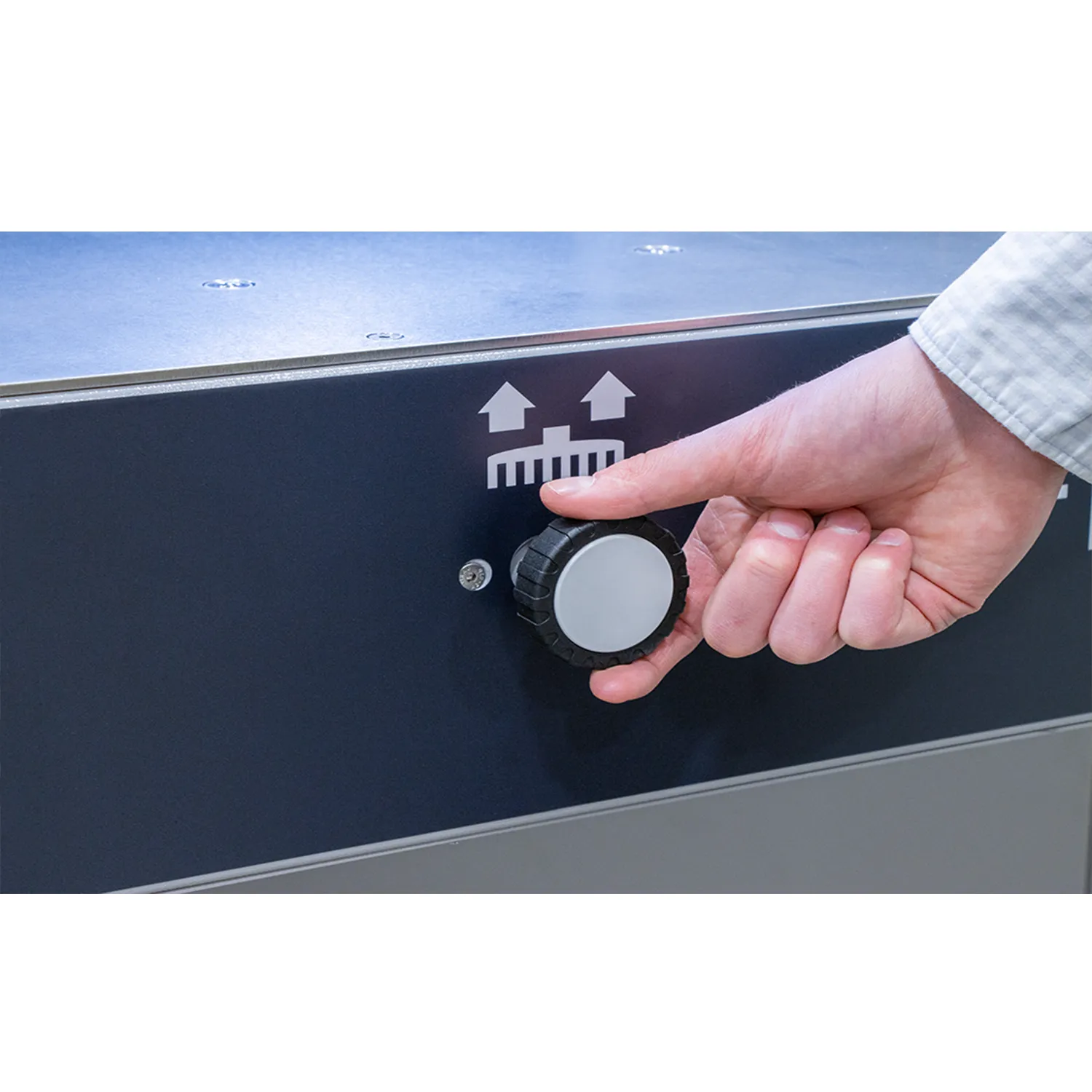

  • Fine-Tuning Knob: Allows users to precisely adjust the back gauge position.
  • Hydraulic Pressure Gauge Knob: Displays pressure and allows for easy adjustment of clamp pressure.
• Operating Features:
• Cutting Capacity: Paper stacks up to 4” high and up to 28” wide.
• Automatic Blade Return from Any Position: Provides safe and accurate operation.
• Programmable Jobs: Up to 100 jobs/100 steps, including paper eject and cues for turning directions.

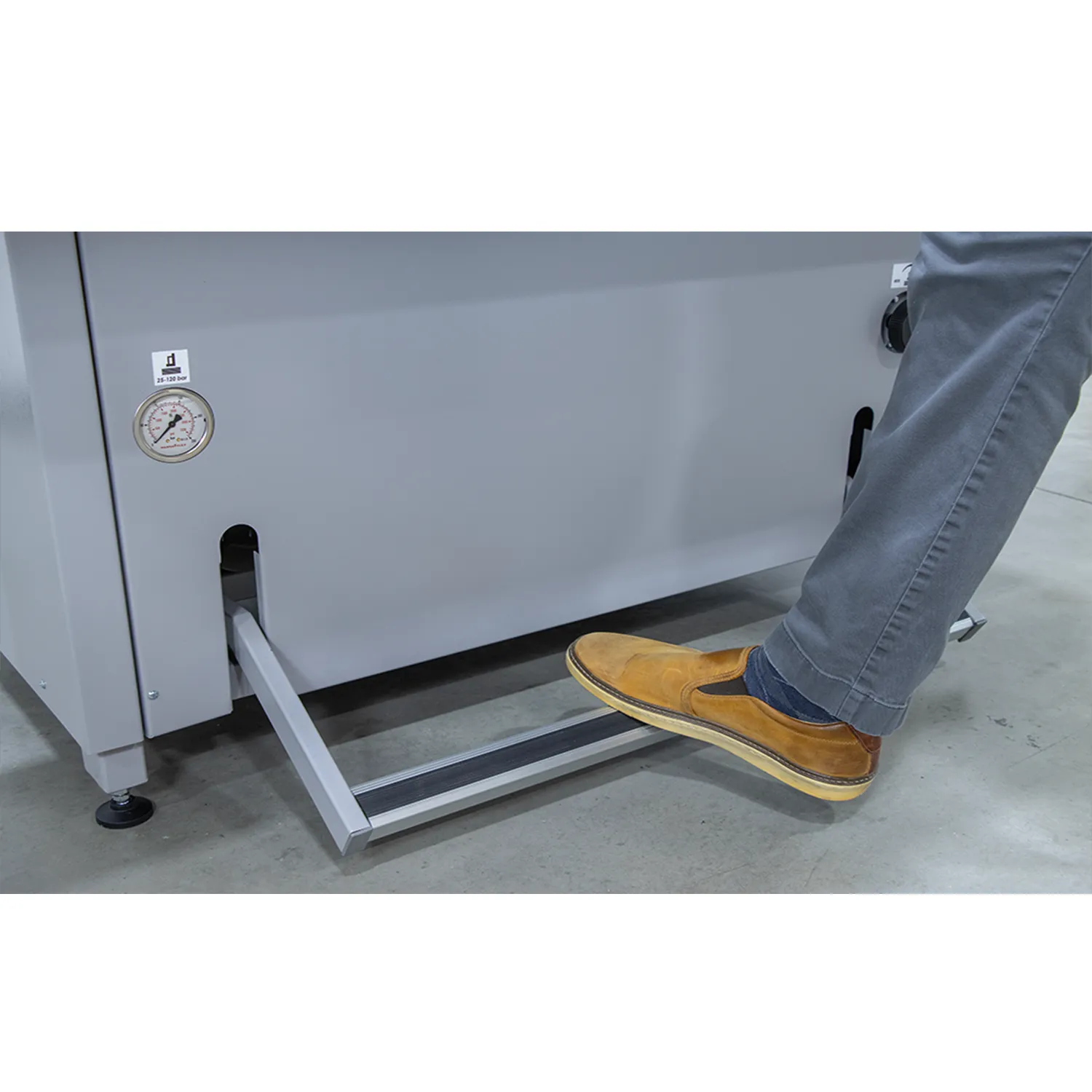

• Foot Pedal Pre-Clamp: Holds paper stack in position to check alignment prior to cutting.
• Business Card Cutting Mode: Allows for quick and easy set-up.
• Automatically-Adjusting Back Gauge: Ensures accuracy and reduces operator effort.
• Safety Features:

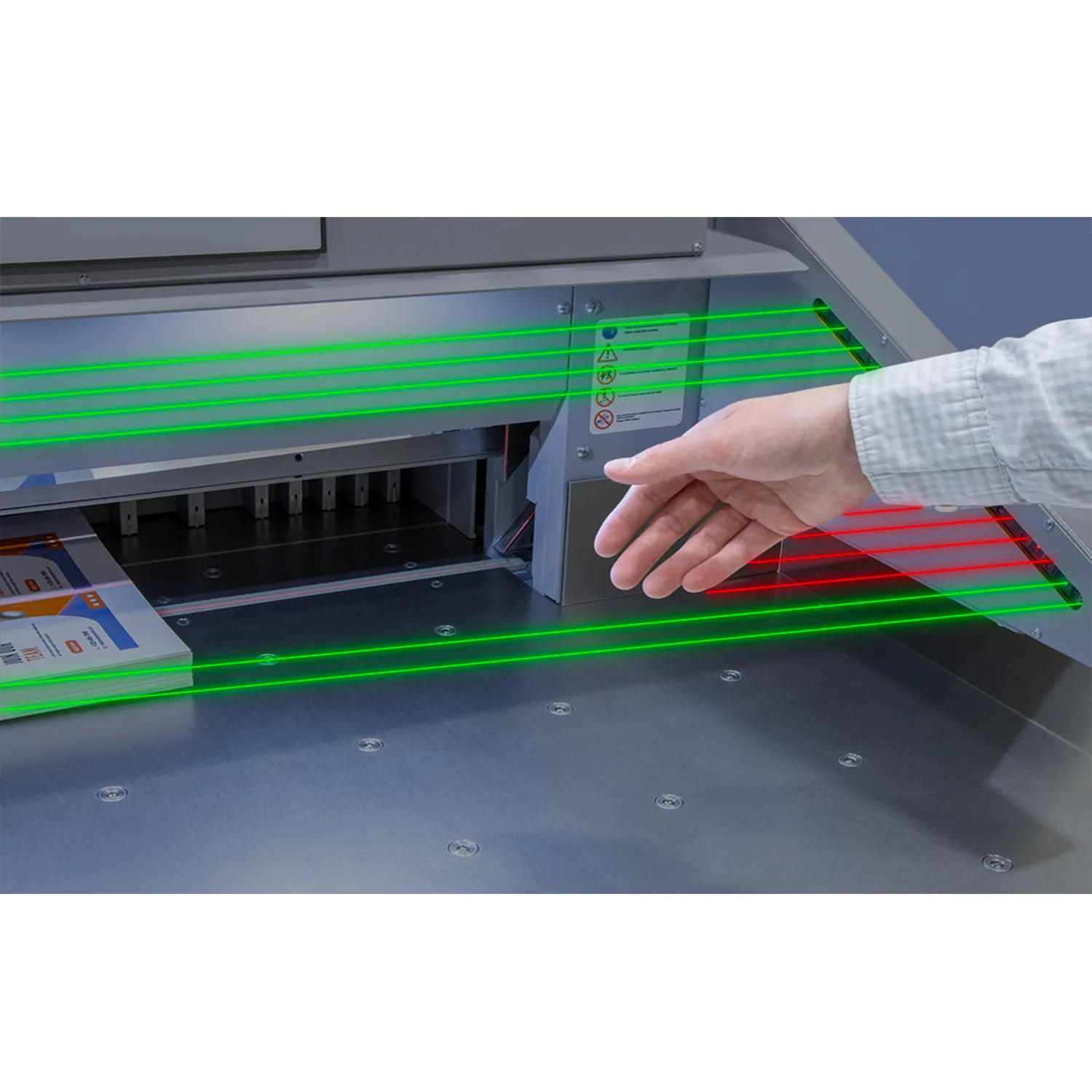

• Infrared Safety Curtain: Light beam curtain shuts down operation if the plane is interrupted.
• Two-Button Operation: Both buttons must be pressed simultaneously, keeping hands away from the cutting area.
• Blade Change Safety Tool: Allows users to easily and safely change the blade.

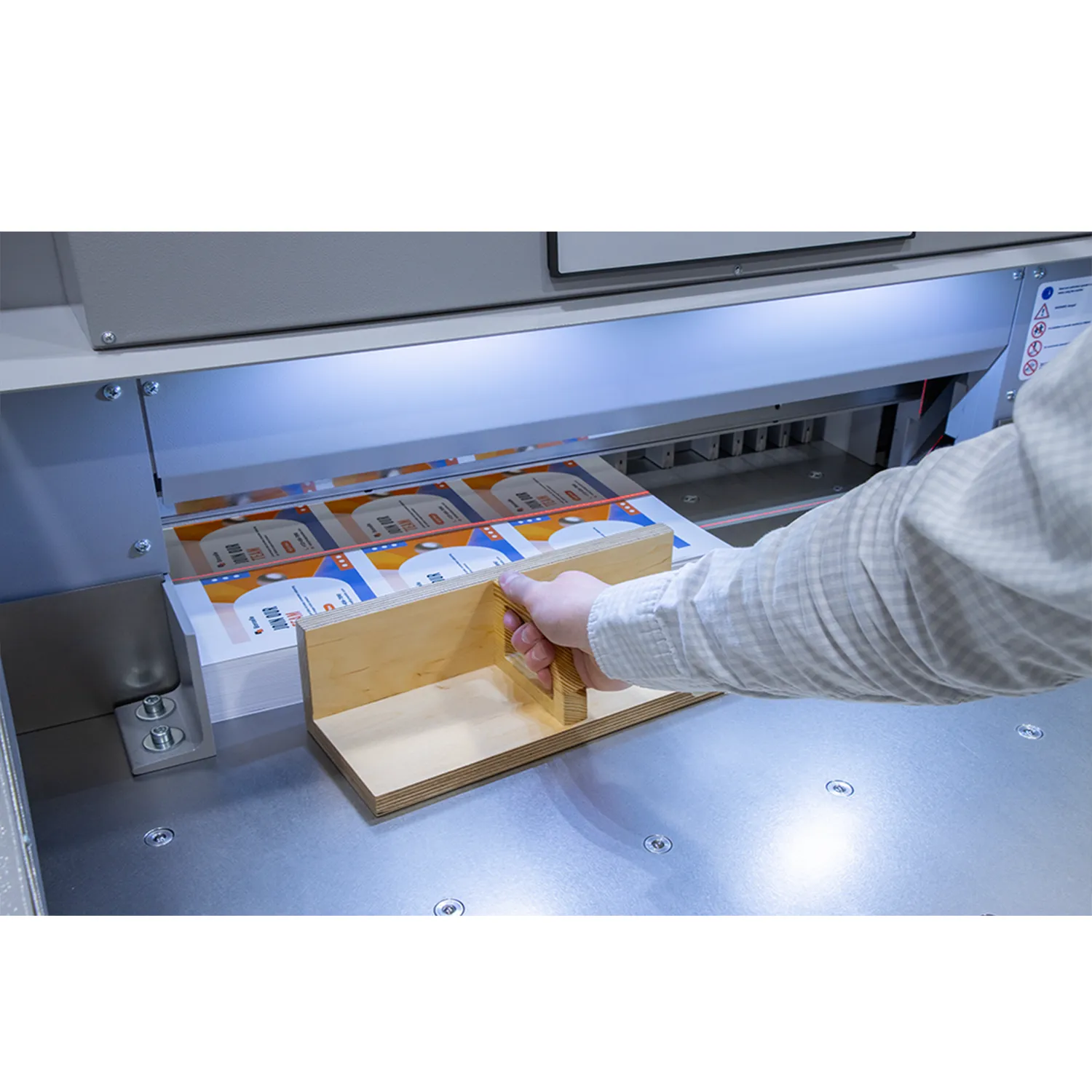

• Wooden Paper Push Tool: Helps to quickly and safely align the paper stack.

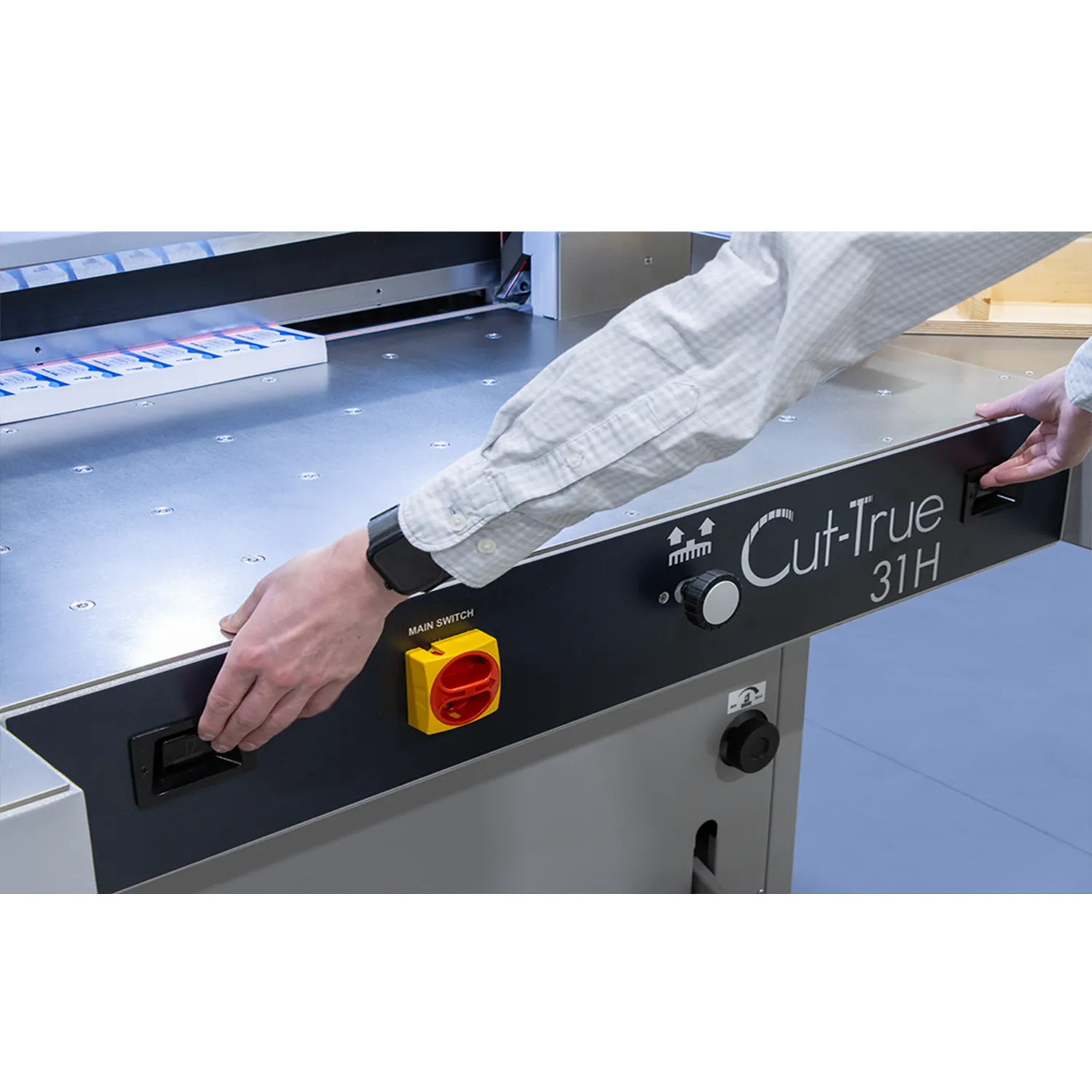

• Main Switch and Safety Key Lock: Keeps cutter secure from unauthorized operators.
• Options / Supplies:
• 31-10: Replacement Blade.
• 31-20: Replacement Cutting Sticks, pkg of 10.
