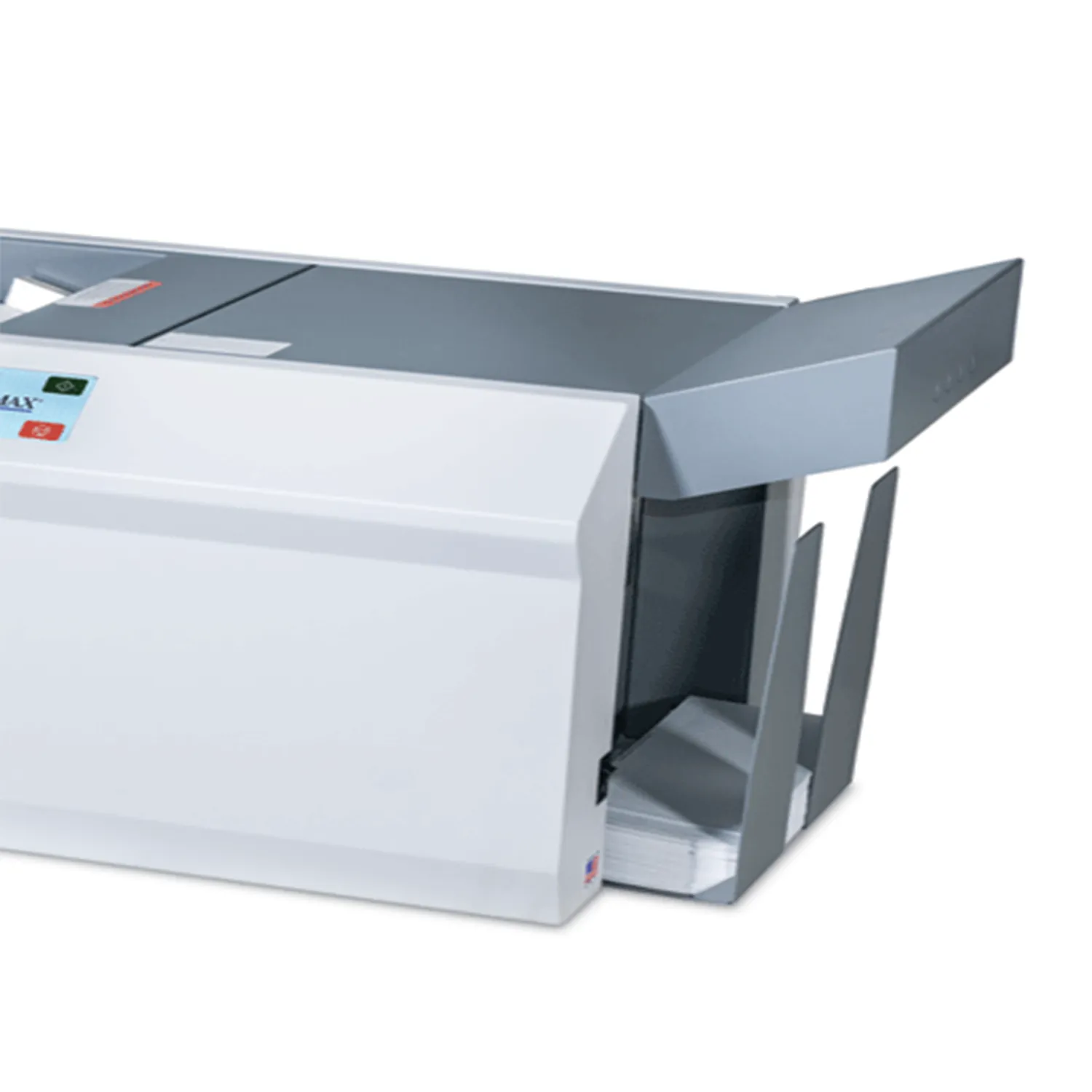

Formax AutoSeal FD-2006 Pressure Sealer & Folding Machine
Formax AutoSeal FD-2006 Pressure Sealer & Folding Machine
Sales Count (57)
Description
The Formax AutoSeal FD-2006 is a user-friendly mid-volume pressure sealer for processing one-piece pressure sensitive mailers. It has a speed of up to 8000 forms per hour and has the ability to process forms up to 14" long. The color touchscreen control panel uses internationally-recognized symbols in place of text, making it easy for anyone to use. Standard features include fold plates that are easy to set and adjust, and drop-in top feed system, all in a compact and sleek desktop design. Fold plates are pre-marked for standard folds for 11" and 14" form sizes, and can be easily adjusted for custom folds. Fold types include Z, C, Uneven Z and C, Half and custom folds. This Formax AutoSeal FD-2006 Mid-Volume Pressure Sealer can be used for virtually any application that can be printed on one form, including checks, invoices, school reports, tax forms and appointment notices. The FD 2006 is also available as a package, the P2006, which includes a fully enclosed cabinet for storage and an 18" conveyor with photo eye for neat and sequential stacking of processed forms. The cabinet and conveyor are options for the FD 2006. The FD 2006 is proudly built in the USA with proven Formax technology.
Product Details

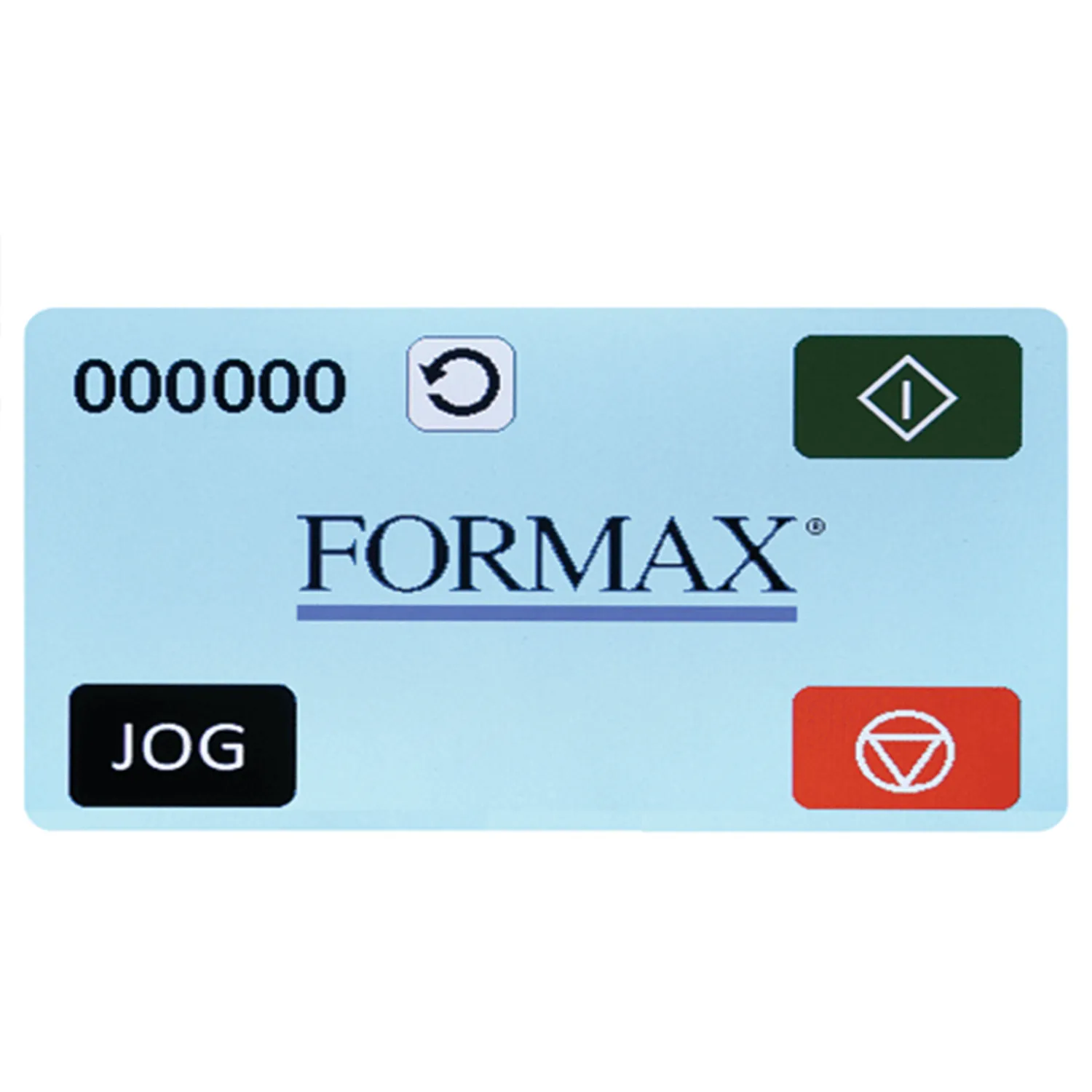

- Color Touchscreen Control Panel: Graphics-based and designed for easy, walk-up use.
- Drop-In Feed System: A drop-in three roller feed system produces dependable feeding of forms with no paper fanning required.
- Hopper Capacity: Up to 250 forms.
- Fold Plates: Easy to adjust and fine tune.
- Paper Jog Control: Allows operators to jog forms through before operation.
- 14" Form Length Capability: Flexibility to process even and uneven panel forms up to 14" in length.
- Desktop Design: A sleek desktop design made with office usage in mind.
- Noise Reduction: Top and side covers are insulated to reduce operating noise.
- Fold Types: C, Z, V, uneven C and Z, custom folds.
- Made in the USA.
- Options:
- P2006: Cost saving package that includes the FD 2006, 18" conveyor and cabinet.
- 18" Conveyor with Photo Eye: Allows for neat and sequential stacking of processed forms.
- Locking Cabinet: Fully enclosed for storage, with casters for easy mobility.
- 402 Series Jogger: Reduces static electricity from forms and aligns them for proper feeding.
- Reverse Stacking Conveyor: Allows for A-to-Z input and A-to-Z output.
- Hopper Capacity: Up to 250 sheets 24# (90gsm)
- Fixed Speed: Up to 8,000 sheets per hour - based on 11" (279mm) "Z" fold
- Paper Size: Up to 8.5" W x 14" L (216 W x 356 L mm)
- Monthly Duty Cycle: Up to 75,000/month
- Power:
- FD Model: 120 Volts AC 50/60Hz
- FE Model: 220 Volts AC 50/60Hz
- Dimensions: 25.75" L x 16.5" W x 14.25" H (65 L x 42 W x 36 H cm)
- Dimensions w/ 18" Conveyor & Cabinet: 46" L x 22" W x 44" H (117 L x 56 W x 112 H cm)
- Weight: 88.5 lbs (40 kg)
- Document Sequence:
- Standard sequence is A-to-Z input, Z-to-A output.
- Optional FD 2000-35 reverse conveyor available for A-to-Z output.
- Certifications: UL , CUL, & CE Approved
Additional Information:
| Not Available |
Scott P****
"Dependable and practical for everyday use. Once we learned the settings for our forms, operation became easy and results have remained consistent."
Gregory F****
"Great machine for high-volume processing. It has reduced repetitive work for our team and helped us complete mailing jobs much more efficiently."
Eric M****
"A capable pressure sealer with solid output quality. There is a slight learning curve, but overall we've been very satisfied with its performance."
Jason T****
"We upgraded to this machine to handle a larger workload and it has performed very well. Good speed, consistent folds, and reliable sealing."
Patrick W****
"The FD-2006 performs well for recurring document processing. Feeding is generally smooth and the finished pieces look professional."
Brian T****
"Simple to operate and a real time saver. It's been a dependable addition to our office."
Steven P****
"Good performance once properly configured. The initial setup was more involved than expected, but after some adjustments the machine has worked reliably."
Kevin R****
"Very pleased with the FD-2006. It processes our pressure seal forms quickly and delivers clean, consistent results every time."
Thomas M****
"Well-built and efficient. It handles our workload reliably, although getting the initial settings exactly right required a few test runs."
Andrew P****
"The automation has been extremely useful for our accounting department. Folding and sealing are consistent, and we spend far less time preparing documents manually."
Robert B****
"Fast and reliable. We've processed several large batches without any significant problems."
Jonathan W****
"Very good results for our regular mailing jobs. The controls took a little time to learn, but daily operation is now straightforward."
Matthew C****
"A huge improvement over our previous process. The FD-2006 saves time, reduces manual handling, and produces professional-looking documents."
Christopher H****
"Solid machine with dependable performance. Setup required some attention, but once configured correctly it runs smoothly."
Formax A****
"Excellent pressure sealer. We use it regularly for recurring mailings and have been impressed with its speed and consistent output."
Michael A****
"The FD-2006 has made our document processing much faster. It folds and seals consistently, and our staff found it easy to operate after the initial setup."
Key Features
- Color touchscreen control panel
- Speed: Up to 8,000/hour
- Sliding fold plate design
- Processes up to 14" forms
