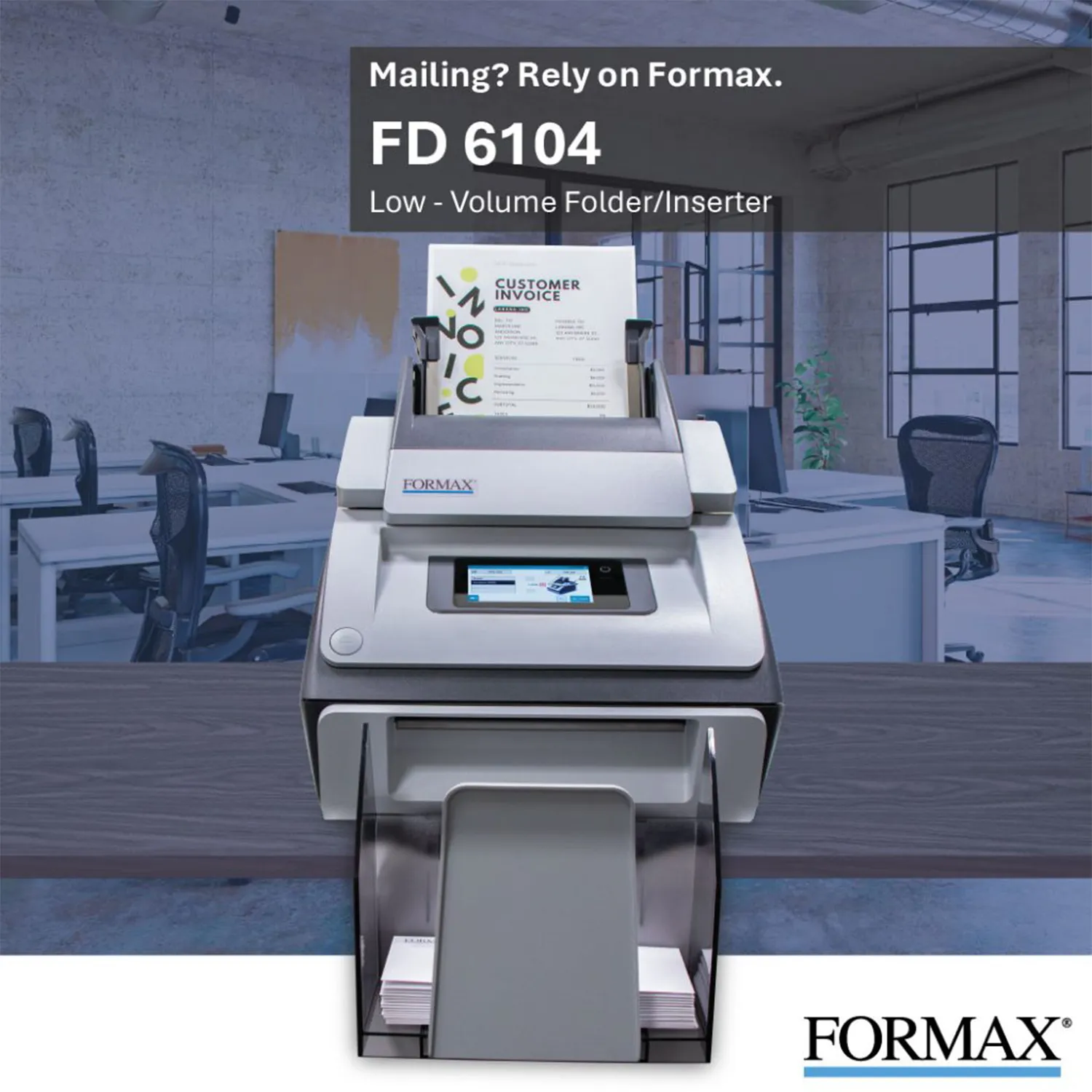

Formax FD 6104 Low-Volume Automatic Folder Inserter Machine
Formax FD 6104 Low-Volume Automatic Folder Inserter Machine
Sales Count (78)
Description

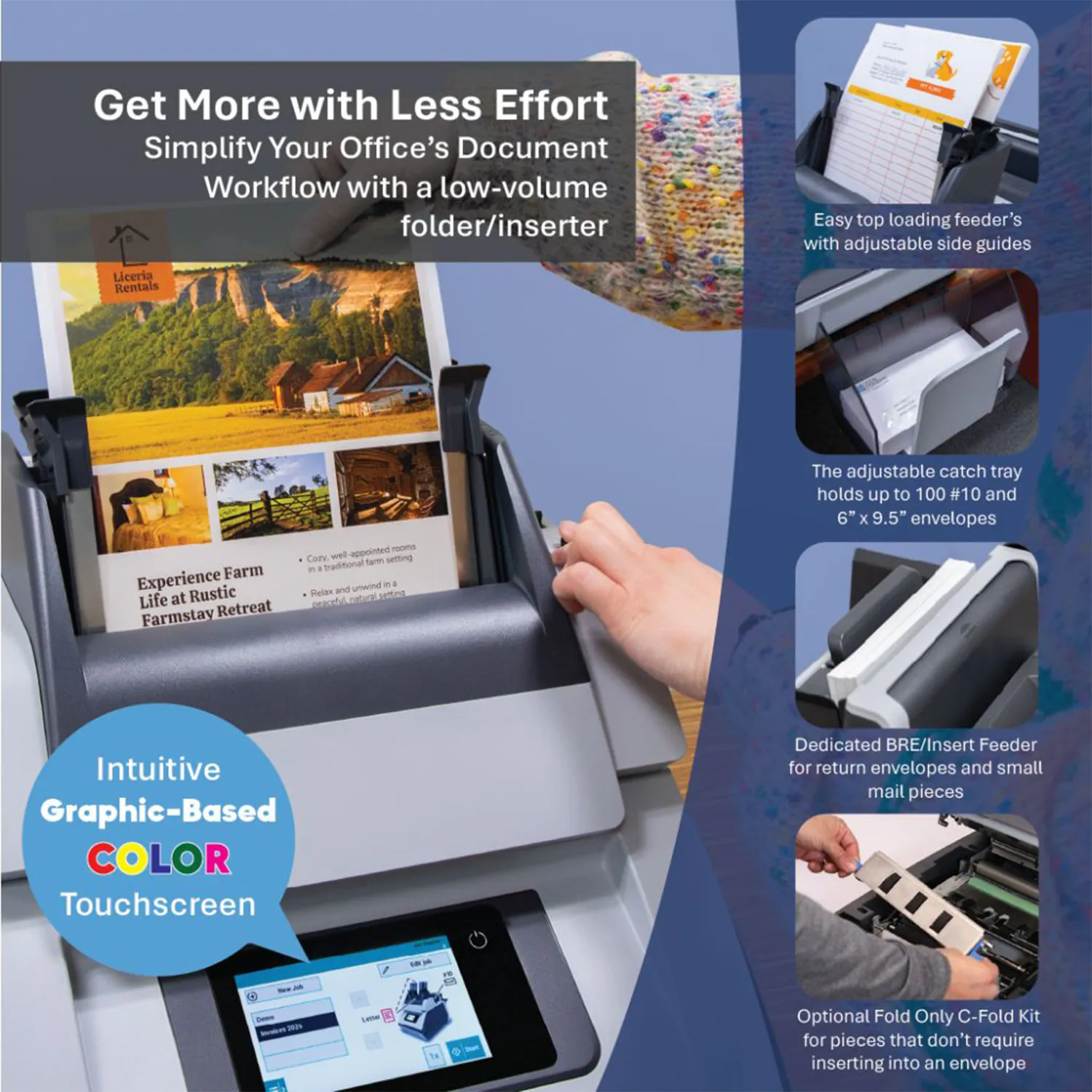

The FD 6104 Inserter brings automated folding and inserting to any-size office with an affordable, compact design that delivers professional mailing results without high-volume requirements. Its intuitive 5" full-color touchscreen with wizard-based setup allows quick access to saved jobs and provides clear status indicators for each feeder, supporting up to 15 programmable jobs for fast one-touch operation. Equipped with two automatic sheet feeders and a dedicated insert/BRE feeder, it processes documents up to 14" long and handles up to 1,350 envelopes per hour, while electromagnetic double-document detection ensures accurate insertion every time. Energy-saving standby mode helps reduce power consumption, and an optional fold-only C-fold kit expands versatility for producing brochures and marketing materials without envelopes. Designed to streamline workflows and eliminate manual mail preparation, the FD 6104 is a smart way to boost office productivity and efficiency.
Product Details

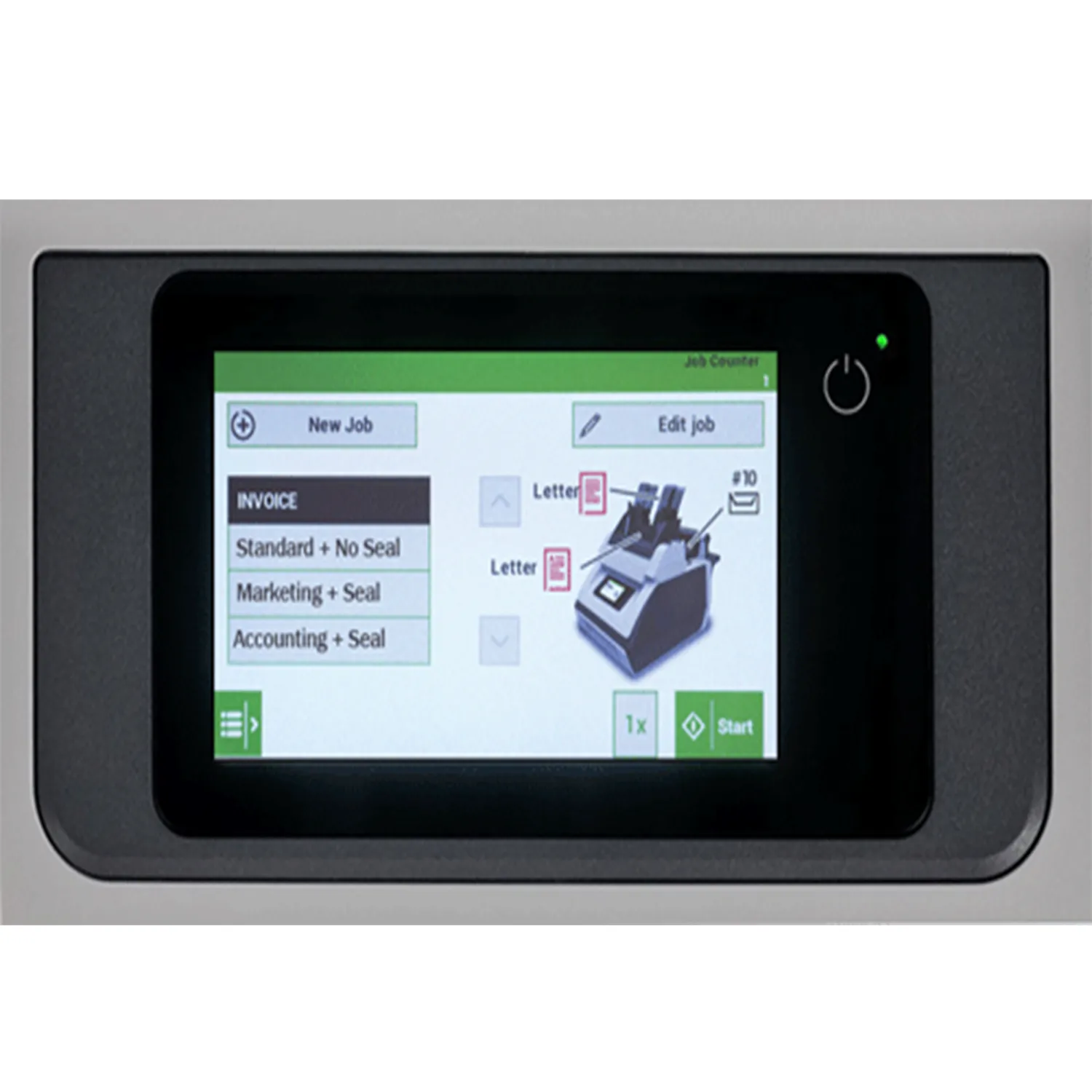

- Color Touchscreen: Simple, intuitive operation.
- High Productivity: Processes up to 1,350 filled envelopes per hour.
- Up to 15 Programmable Jobs: Store and recall frequent setups.

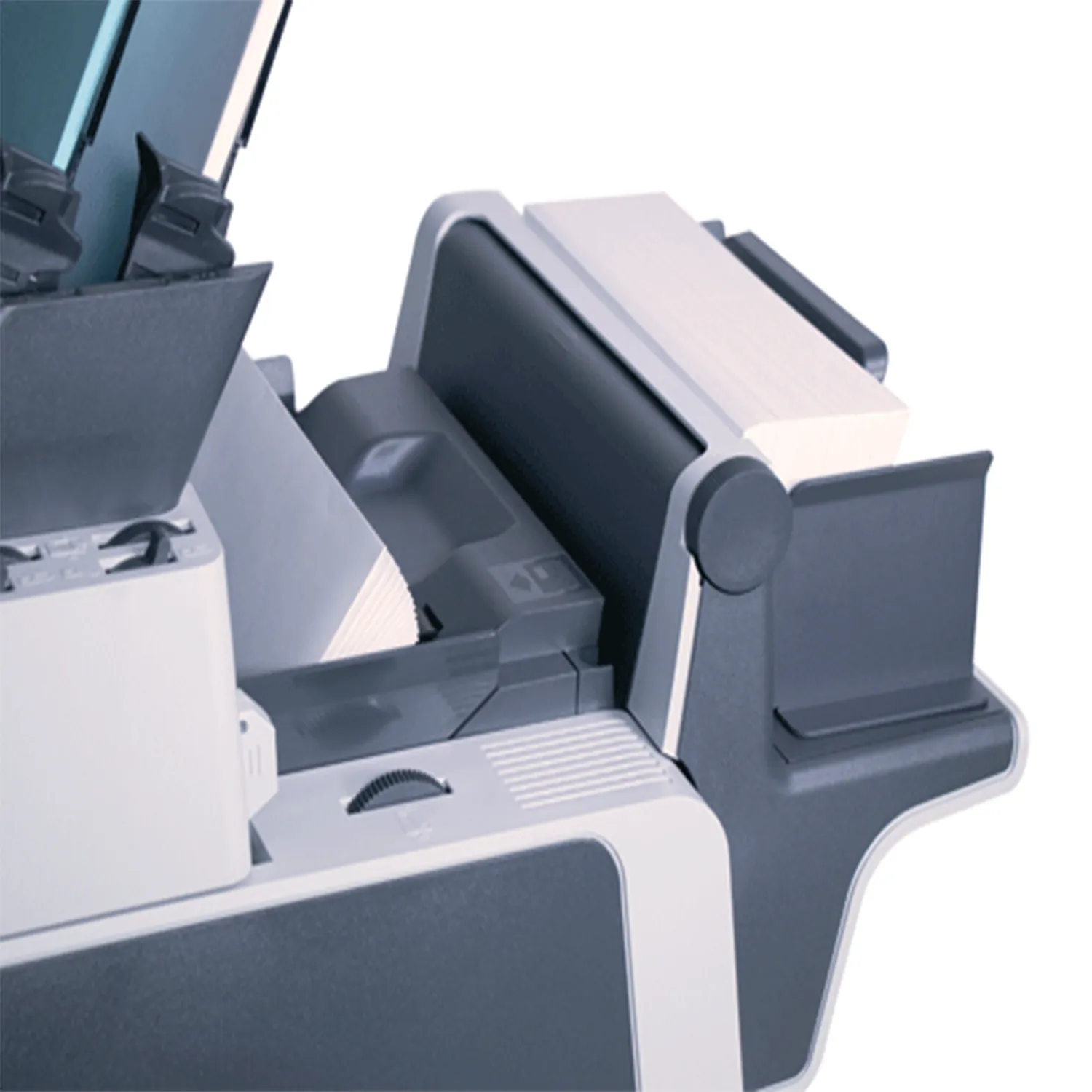

- Dedicated BRE/Insert Feeder: Ensures smooth, reliable feeding.

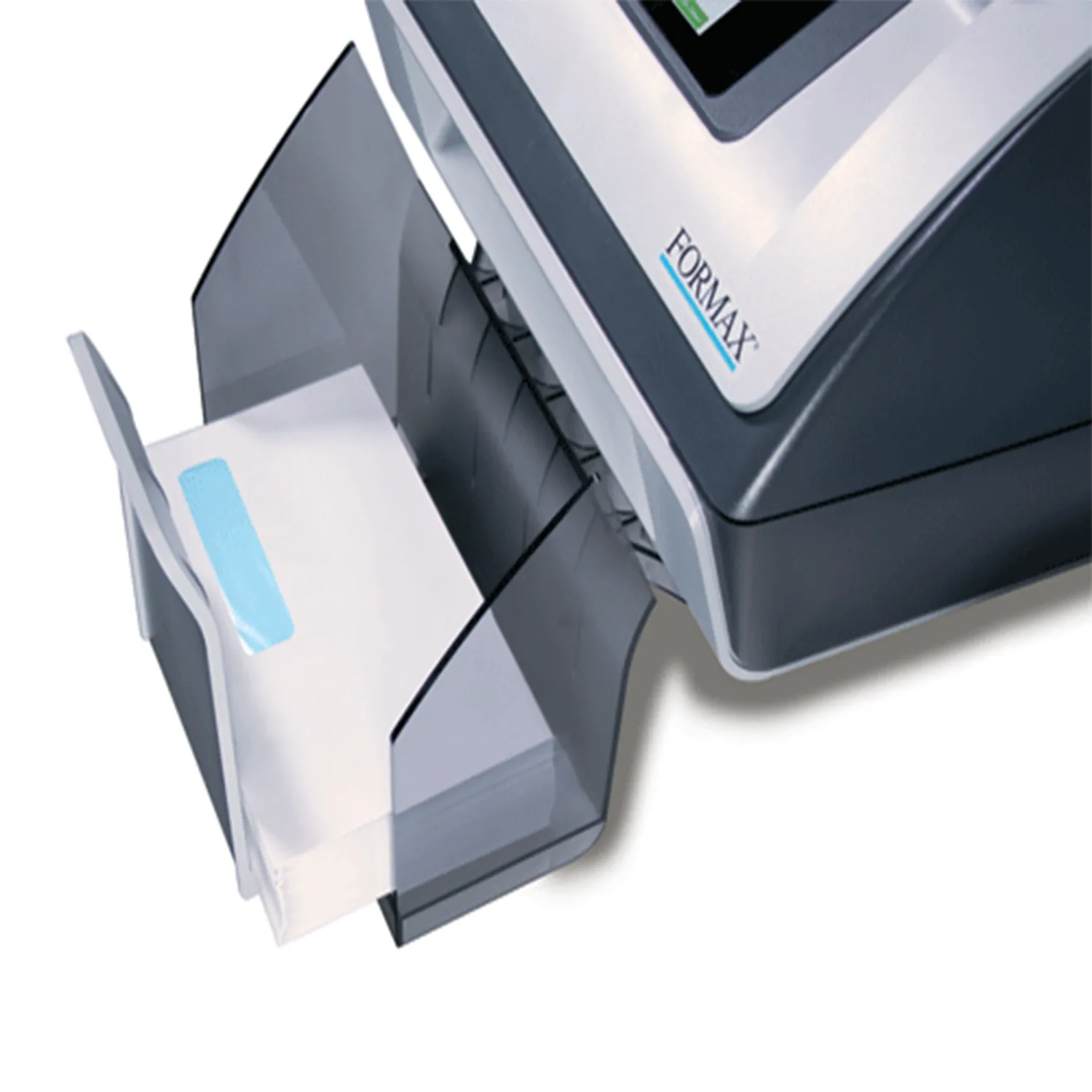

- Adjustable Catch Tray: Neatly organizes finished envelopes.

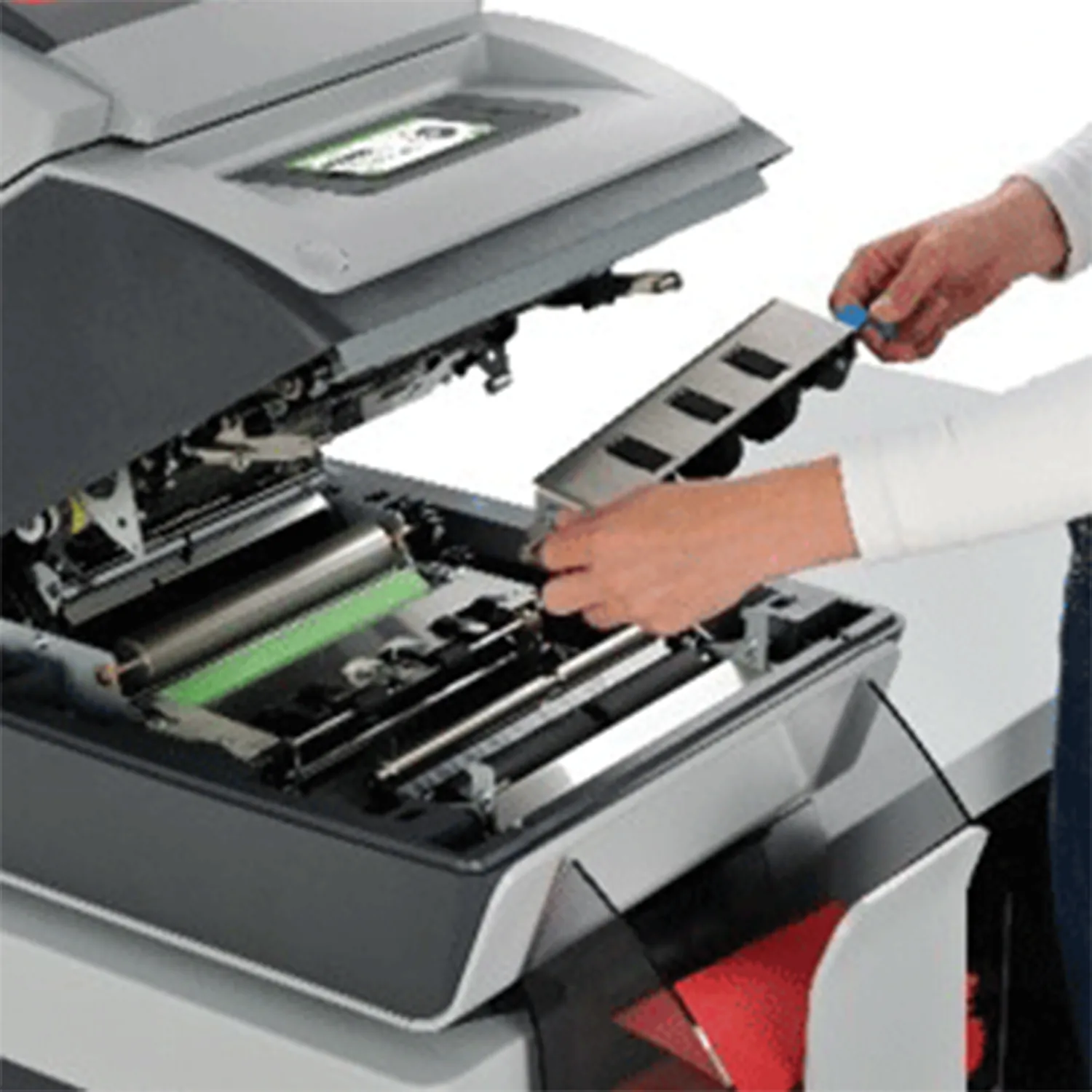

- Clamshell Design: Allows easy access for clearing and maintenance.
- Easy-Load Feeders: Fast, user-friendly setup.
- Sheet Accumulation Before Folding: Ensures accuracy when folding multiple pages.
- Double Document Detection: Prevents misfeeds and errors.
- Multiple Fold Types: C, V, Double Parallel, and No-Fold options.
- Fold-Only Function: Folds documents without inserting.
- Folds Up to 5 Sheets: Handles small sets efficiently.
- Resettable Counter: Tracks job quantities.
- ECO Mode: Reduces power consumption.
- Daily Mail Mode: Ideal for manually fed, mixed mail.
- Seal or No-Seal Operation: Flexible output based on mailing needs.
- Cascade Mode: Automatically switches feeders for longer runs.
- Option
- Tri-Fold Kit: Creates a "perfect fold" even panel C-fold for brochures, marketing pieces, fund raising and more. Easily installed by temporarily replacing the moistener kit.
- Feeder Capacity:
- Up to 100 sheets in each sheet feeder (20#)
- Up to 100 inserts/BREs in the insert feeder
- Up to 100 outgoing envelopes
- Fixed Speed: Up to 1,350 pieces per hour
- Duty Cycle: Up to 5,000 pieces per month
- Folding Capacity: Up to 5 sheets at once
- Programmable Jobs: Up to 15
- Paper Size: 5.6" - 8.9" W x 7" - 14" H
- Paper Weight: 18 - 30 lbs (68 - 113gsm)
- Insert/BRE Size: 5.6" - 8.9" W x 3.5" - 5.9" H
- Insert Weight: 20 - 62 lbs (75 - 233gsm)
- BRE Weight: 19 - 30 lbs (71 - 113gsm)
- Outgoing Envelope Size: 8.8" - 9.5" W x 4.1" - 6" H
- Dimensions w/o catch tray: 26" L x 17" W x 22" H
- Weight: 82 lbs
- Voltage: 120 Volts AC 50/60Hz
- Safety Certifications: UL approved
- Manufacturer's Warranty: 90 day parts and labor
