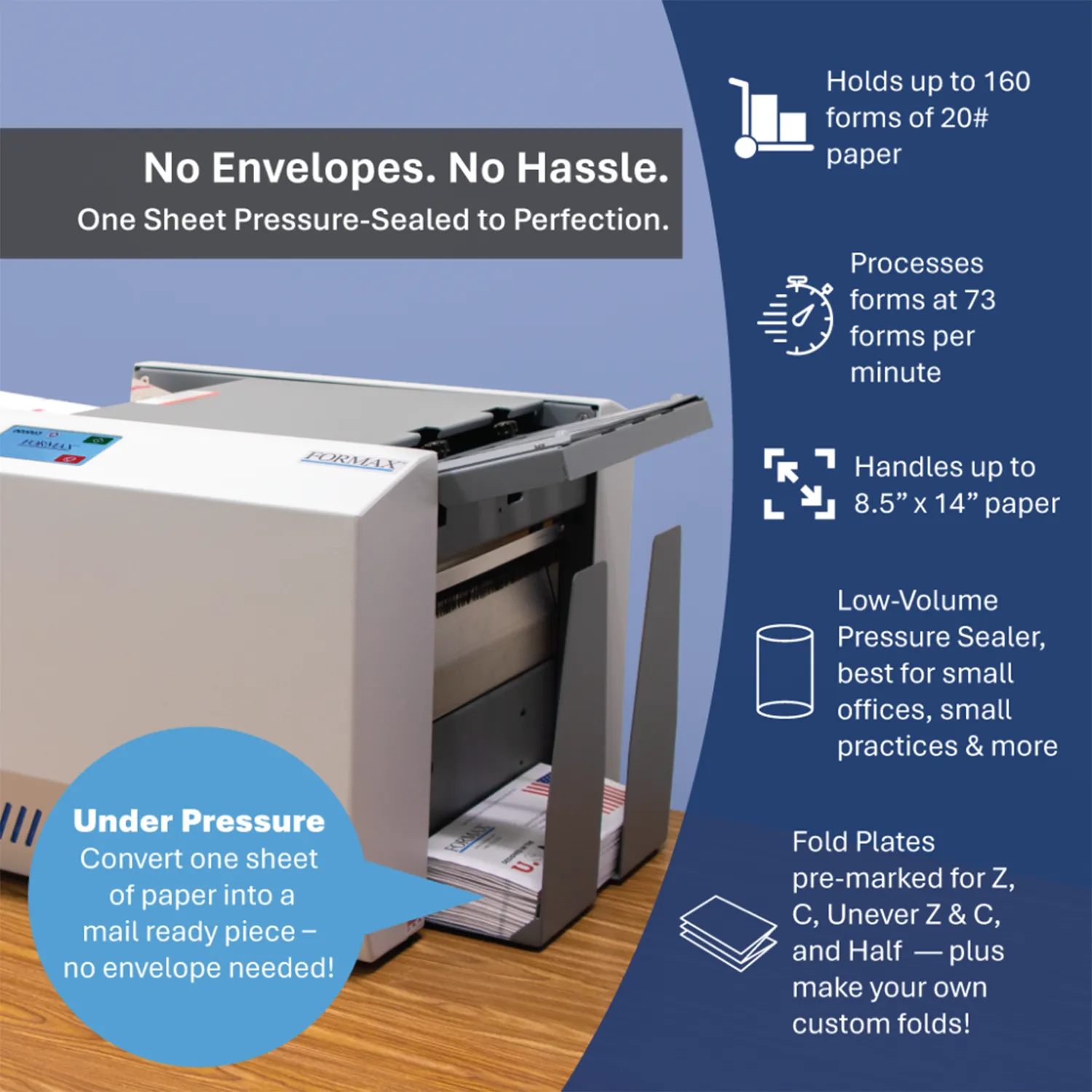

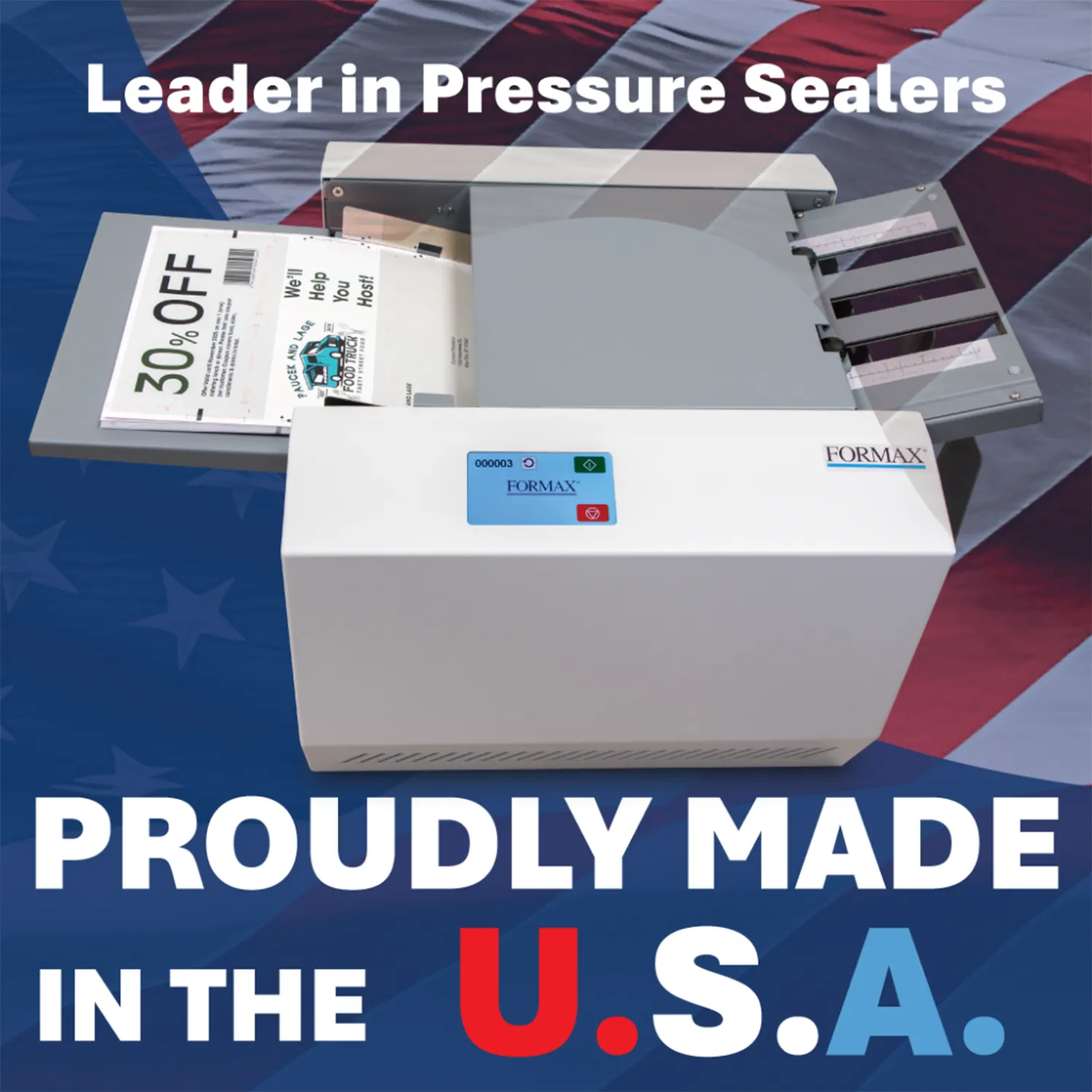

Formax AutoSeal FD 1406 Pressure Sealer & Folding Machine
Formax AutoSeal FD 1406 Pressure Sealer & Folding Machine
Sales Count (84)
Description
The FD 1406 AutoSeal is a compact, user-friendly low-volume pressure-seal solution designed to efficiently process one-piece pressure-sensitive mailers at speeds of up to 73 forms per minute and lengths up to 14”. It features a color touchscreen control panel with intuitive graphics, clearly marked and easily adjustable fold plates pre-set for standard 11” and 14” forms, a drop-in top feed system for simple loading, and a six-digit resettable counter for job tracking. Built in the USA with proven Formax technology, the FD 1406 delivers reliable daily performance in a sleek desktop design, providing an economical and dependable choice for offices and small-volume mail operations.
Product Details

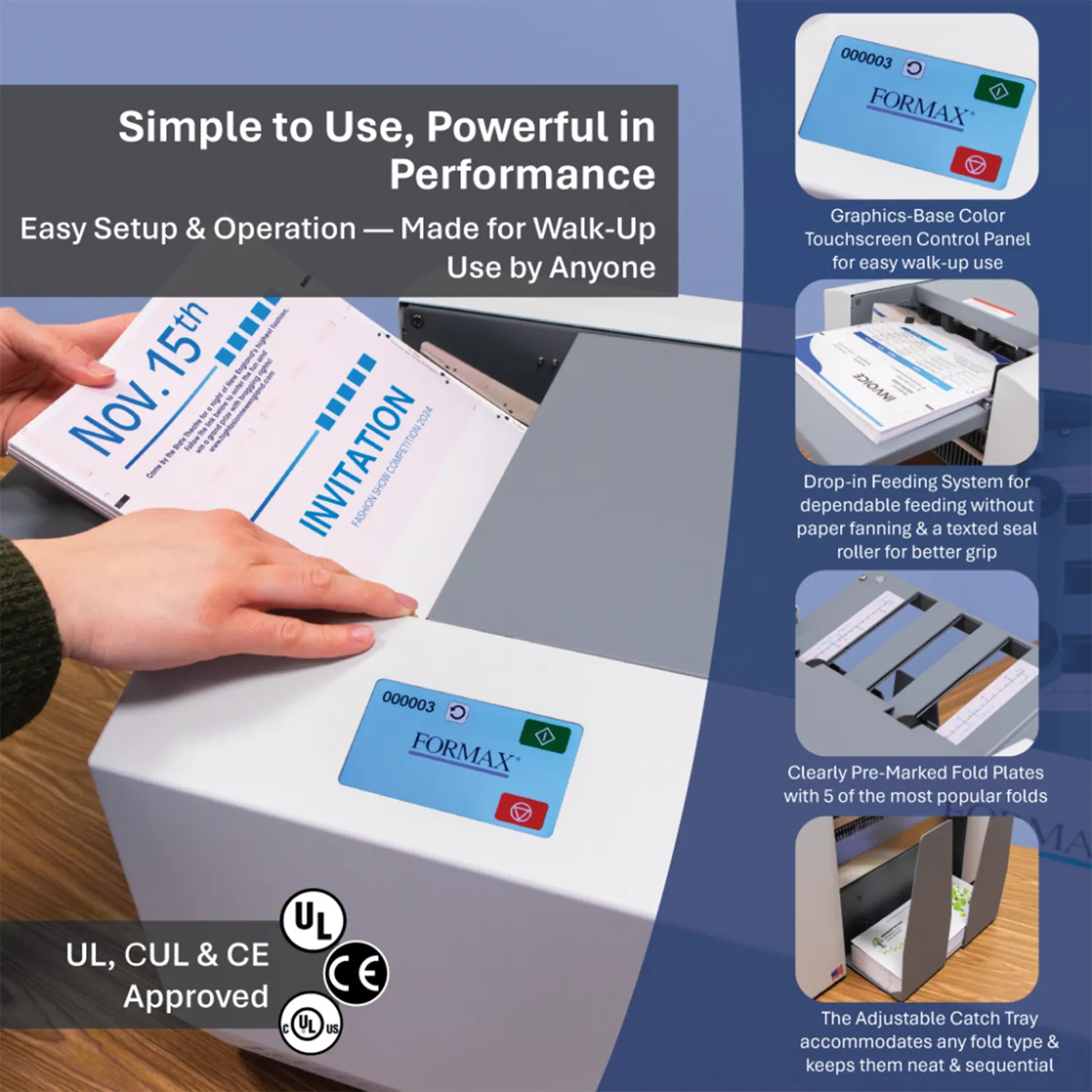

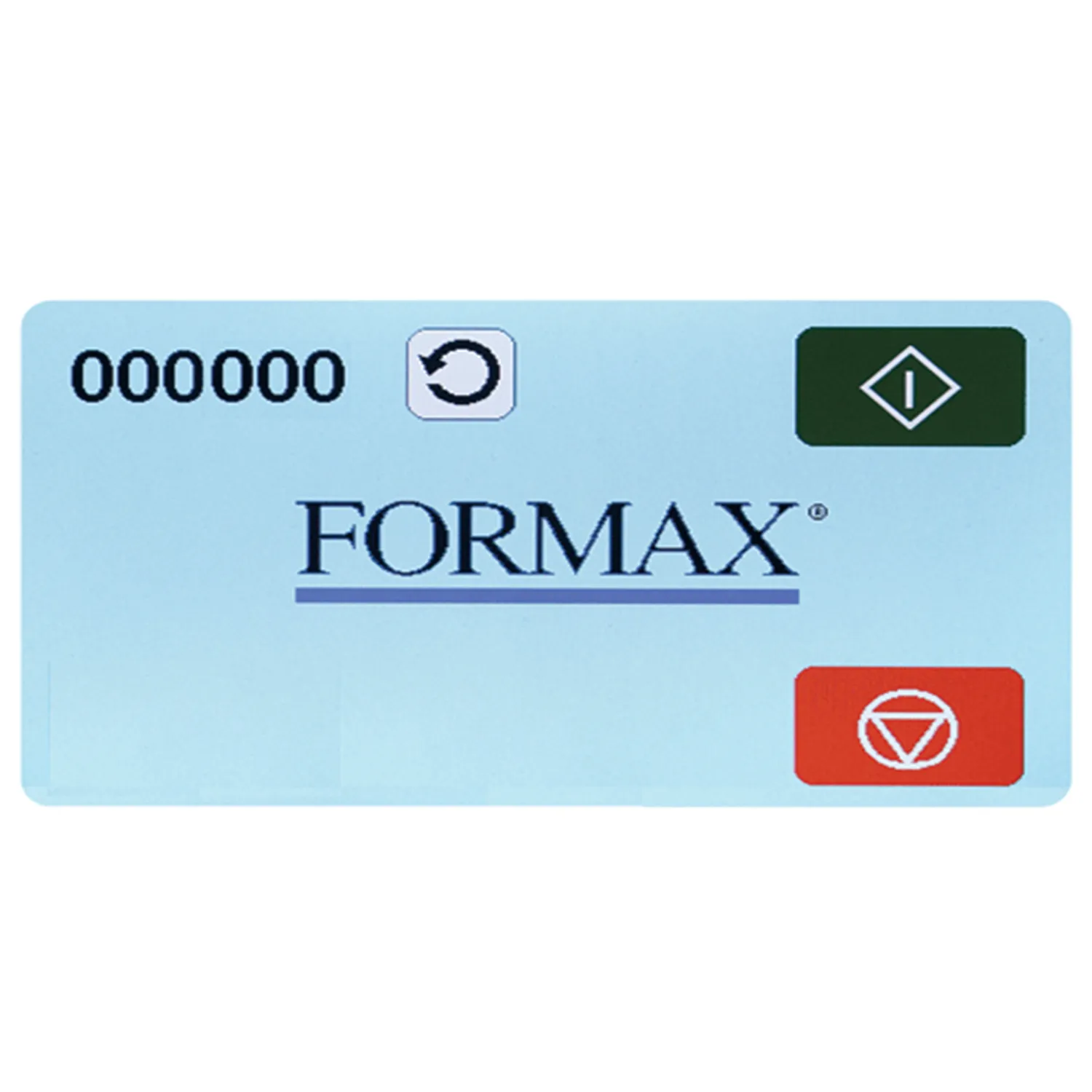

- Color Touchscreen Control Panel: Simple, intuitive operation.
- Compact Desktop Design: Fits easily in small office spaces.
- Drop-In Top Feed System: Quick and hassle-free loading.
- 14” Form Length Capability: Handles a wide range of document sizes.
- Fast Processing: Folds up to 73 forms per minute.
- Multiple Fold Types: Z, C, uneven Z, uneven C, half fold, and custom folds.
- 160-Form Hopper Capacity: Supports longer, uninterrupted runs.

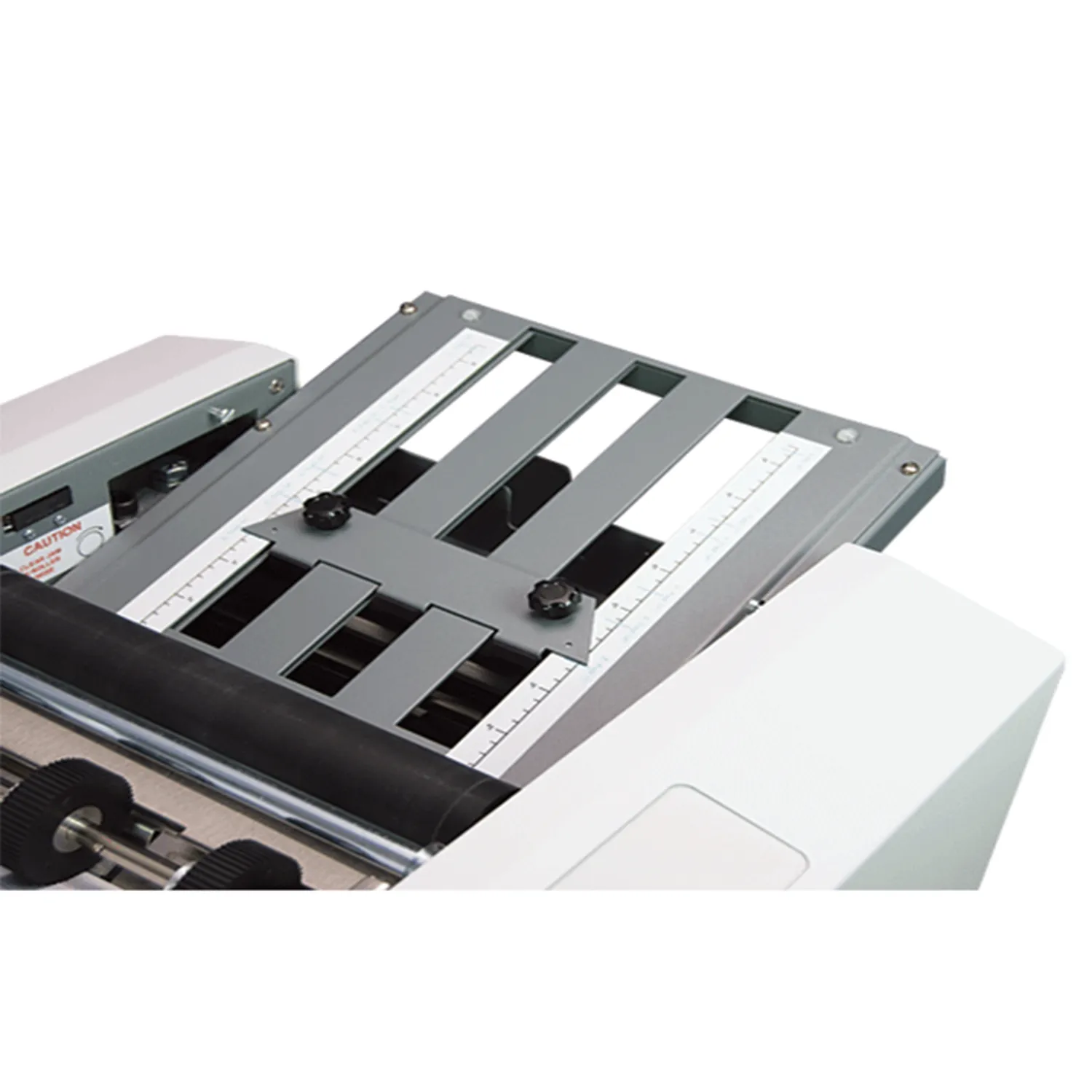

- Pre-Marked, Easy-to-Adjust Fold Plates: Speeds up setup and changeovers.
- Six-Digit Resettable Counter: Tracks job quantities accurately.
- Adjustable Catch Tray: Keeps folded forms neatly organized.
- Adjustable Infeed Side Guides: Ensures proper document alignment.
- Hopper Capacity: Up to 160 Sheets 20#
- Fixed Speed: Up to 73 sheets per minute - based on 11" "Z" fold
- Paper Size: Up to 8.5" W x 14" L
- Monthly Duty Cycle: Up to 30,000/month
- Power: 120 Volts AC 50/60Hz
- Dimensions: 24” L x 17” W x 13” H (610 x 432 x 330mm)
- Weight: 81 lbs (37kg)
- Certifications: UL, CE and CUL Approved
- Manufacturer's Warranty : 90 day Manufacturer's Warranty on parts and labor
Additional Information:
| Not Available |
Edward G****
"Reliable machine with consistent folding and sealing. It took a little time to learn the best settings for our forms, but after that it has been easy to operate and dependable."
Stephen R****
"A practical pressure sealer for our business. The machine runs smoothly and handles our routine processing needs well. Overall, we're pleased with its performance."
Aaron J****
"We've processed multiple batches since purchasing this machine and haven't experienced any major problems. It's efficient, straightforward to operate, and saves our staff a considerable amount of time."
Justin P****
"It does the job and produces clean finished documents when everything is properly adjusted. I would have preferred a simpler setup process, but day-to-day operation has been reliable."
Gregory S****
"Good performance and solid construction. We use it regularly in our office and the results have been consistent."
Timothy E****
"This has been a significant improvement over our old equipment. The FD 1406 processes documents quickly, folds consistently, and has been dependable during larger batches. Very satisfied with the purchase."
Jeremy W****
"A capable machine with good output quality. There is a bit of a learning curve when first setting it up, especially if you haven't used a pressure sealer before. After becoming familiar with it, operation is much easier."
Scott H****
"We've been using the FD 1406 for recurring mailings and have had a positive experience. It handles our normal workload without trouble and doesn't require much operator attention once the job starts."
Patrick H****
"Fast, easy to use, and consistent. Exactly what we needed for processing our pressure seal documents."
Nathan C****
"The machine works well overall, but the initial setup took longer than I expected. We had to make a few adjustments before getting consistent folds. Since then, performance has been good."
George P****
"Very reliable for regular office use. Once we had the settings configured correctly, operation became straightforward. It has definitely reduced the amount of manual work involved."
Brandon M****
"Excellent machine for our accounting department. We process pressure seal forms several times a week, and the FD 1406 has made the entire process much faster. Feeding is smooth and the finished documents look professional."
Key Features
- Color touchscreen control panel
- Speed: Up to 73 pieces/min
- Easy-adjust pre-marked fold plates
- Three-roller top-feed
- Processes up to 14" forms
